C series ultrasound machine

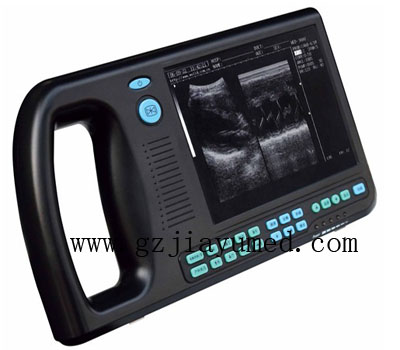

JY-C3 Digital handheld animal ultrasound machine
Main Features:
It is weighting only 1.3KG,is distinguishable by its bright and clear image quality. The interchangeable
probes offer a wide range of diagnostic applications.This scanner is a cost effective solution for family
doctors,veterinary scanning.The complete software and the high product versatility are available in it.
probes offer a wide range of diagnostic applications.This scanner is a cost effective solution for family
doctors,veterinary scanning.The complete software and the high product versatility are available in it.
Technical Specification :
·Scanning Method: Convex, Micro-convex, Linear, rectal
·Display Mode: B, B+B, B+M, M
·Gray Scale: 256 levels
·Monitor: 6.4 inch TFT color LCD
·Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
·128 frames for cine-memory
·32 image permanent storage
·Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
·4 focusing combination selectable
·4 different coded-color available
·15 difference kinds of body marks with difference calipers.
·Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD,
HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
·Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
·PAL-D output
·Mouse interface
·Display Mode: B, B+B, B+M, M
·Gray Scale: 256 levels
·Monitor: 6.4 inch TFT color LCD
·Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
·128 frames for cine-memory
·32 image permanent storage
·Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
·4 focusing combination selectable
·4 different coded-color available
·15 difference kinds of body marks with difference calipers.
·Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD,
HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
·Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
·PAL-D output
·Mouse interface
Standard configuration:
LV2-2/6.5MHz frequency rectal probe
SP-2 adapter
Battery
Mouse
Suitcase
SP-2 adapter
Battery
Mouse
Suitcase
