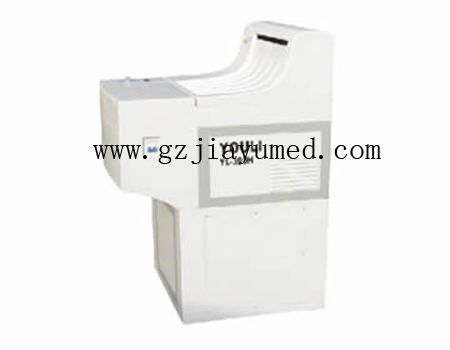

C series medical washing machine
Medical film washing machine ( washing machine, medical washing machine ) performance and specifications
Project ( performance, model) medical film washing machine ( washing machine, medical washing machine )
Maximum flushing maximum width of inches (14 "x 17" ), the smallest inches ( 4" x 4" )
Washing film varieties X ray, CT, MRT and other medical film
Every hour the flushing quantity development time of 20 seconds: 14 x 17 inch 110
Developing time 20S-90S continuously adjustable
The liquid temperature 24 to 36 DEG C. continuously adjustable
The capacity of the liquor Development: 8 L: 8 l fixing
Water consumption of about 3-4 L / min
The power of AC220V / 50HZ / 60HZ 3KW
Volume 790mm x 630mm x 1240mm ( long width height )
Flushing procedure developing - fixing - washed - drying
Method of quantitative pump according to the liquid film area automatic replenishment
