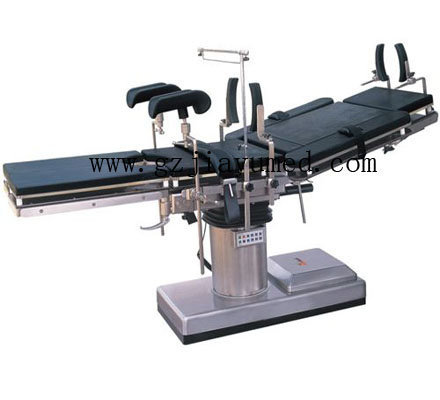

B series Operation table
The tractive effort cylinder has the function of
using C type arm to diacrisis through X ray, which is much suitable for the
surgical operation.
The tractive effort cylinder make the X ray cover 80%.
The structure of the table is in reason and makes the whole Bed stable.
The main parts of the table are imported highly automatically operated, quite,
flexible, and stable.
The system is touched controlled and the bed can be separated into several parts
to match for the body of patient.
The surface of the Bed is made by steel, and the bed surface is made by
polyurethane, which can be washed and disinfected simply.
The base has a flute, which allows the doctor get more close to the patient
during the operationTable dimension including the rails: length 2025mm, width
540mm
Table top dimension: length 2000mm, width 500mm
Table height: lowest≤830mm, highest≥1080mm
Lateral tilt: left≥15°right≥15°
Trendelenburg and reverse trendelenburg: reverse trend≥15°trend≥18°
Head section turning: up≥20°down≥90°
Back section turning: up≥75°down≥15°
Leg section turning down: ≥90°
Leg section swing out: ≥90°
Armrest swing out: ≥90°Standard accessories
Anaesthesia screen frame 1 set
Body strap 1 piece
Lateral support 1 pair
Should holder 1 pair
Leg holder 1 pair
Clamp 1 set
Arm rest 1 pair
Hand control 1 piece
